Digital Microscope

Product Details:

SONY 10 INCH DISPLAY DIGITAL MICROSCOPE 1600X

with HDMI/USB output

with HDMI/USB output Extra Led Lights and Batteries





Specifications

Video Maximum Pixel: 1080P

Screen: 10.1-inch IPS LCD display with 1024*600 resolution

Lens Optic Size:  1/2.8"

Photo Resolution: 2M,3M,5M,8M,10M,12M,16M,20M, 24M,

Video Resolution: 720P, 1080P

Video Format: MP4

Focus Mode: Manual

Picture Format: JPG

Illuminant: 8 LED lights (brightness adjustable)

PC Operating System: Windows 7, Windows 8.1, Windows10, Mac OS x 12 or higher

Interface and Signal Transmission Mode: Micro/USB 2.0/ Mini HDMI

Operating Temperature: -10°C~+55°C

Operating Humidity: 30%-85%RH

Working Current: 700mA

Power Dissipation: 3.5W

Language: English, French, Spanish, Portuguese, German, Italian, Simplified Chinese, Traditional Chinese, Russian, Japanese, Korean

Work with TV

Operating steps

Step 1. Connect LP101 to the TV via a HDMI cable

Step 2. After successful HDMI connection, the microscope will be turned on and the image will appear on the display. At this time, microscope button and remote-control button can be operated; when operating photo/video, the file will be automatically saved in TF card.

Photo mode

When the icon in the upper left corner of the microscope is Photo mode when the microscope is on, short press the Menu button on the microscope or short press the Photo button on the remote control, it can switch to Photo mode.

Video mode

When the icon on the upper left corner of the microscope is "it is in Video mode, when the microscope is on, short press the Menu button on the microscope or short press the Video button on the remote control, it can switch to Video mode

Work with PC

Software download - Download the applicable software

Packing List

Microscope, Bracket, Base, Type-C cable, Mini HDMI Cable, USB Cable, Straightdge, User Manual, Wireless Remote Control,

Product Details:

3D VIDEO MICROSCOPE



Application: Microelectronics, Deep Hole Wale, PCB Inspection, Precision Hardware Precision Electronics Morphology, Lab, Mobile, PCB Board & Visual Inspection, Textile, Maintenance, Etc.

Feature

1. 3D video microscope body based on infinity optical system.

2. Manual switch 2D and 3D observation, 360 °rotation, 45 °objective viewing angle.

3. Working distance always maintain 86mm when you switch 2D and 3D observation,

     No need to adjust the focus.

4. The center position of 2D and 3D is same, zoom to any magnification have a best

     image without adjustable.

5. CCD adaptor with fine-tuning device, it can match any CCD camera, When you

    Finetuning, camera and lens no need to rotate.

6. At Minimum magnification, the field of view is full image without dark edge image,

    High resolution, large depth of view.

7. Widely used in microelectronics, precision electronics, precision hardware,

     deep hole wall, life science, morphology, forensic identification.

Optical Parameter

2D/3D View

2D and 3D Manual Free Switch. Working Distance Always Remain Same. The Center Position Remain Same. 360 °Rotation, 45 °Objective Viewing Angle.

Lens Specification

Optical Magnification: 0.6-5.0X

High Resolution: 0.6-5.0X Zoom Lens 0.6-5.0X zoom optical with 0.5XCCD

(0.3X CCD, 0.5X CCD, 1X CCD Optional)

Total Magnification:  11-95X base of 12.5"monitor

Working Distance: 86mm

Ratio: 1:8.3

Field of View: 24*13.5-2.88*1.62mm

Lens Mount:  Standard C mount

Camera Specification

Image Sensor: 1/2” SONY CMOS

Max Magnification: 1920 x 1080

Pixel Size: 3.75μm x 3.75μm

White Balance:  Manual and auto

Brightness Control:  Manual and auto

Record Format: Snapshot, Picture Format JPG. Resolution 1920x1080.

Record Route:  U disk HDR customized function. Crosshair function

Image Output Interface:  HDMI Type

Light Source Parameter

Light Control:  4 zones control. Brightness adjusts

Light Colour:  White Quantity of LED:  208PCS LED Intensity: 15000 Lux

Wavelength:  455-457.5nm Output Voltage:  12V Output Power: 8-10W

Working Distance: 35-110mm Material: Aluminium Alloy

Diameter: Inner diameter 40mm, outer diameter 106mm, height 19mm

Stand: Base Size: 330*300mm Height:328mm Scope Holder: 50mm



Supplied Product: 1. Stand Base 2. 2D/3D Rotation View 3. 4 Zones control LED Ring Light 4. Zoom Body 5. CCD Fine Focus Tube 6. HDMI camera 7. Stand Post 8. Focusing Holder

Product Details:

Pcb Inspection – Mobile Repair Handheld Microscope Camera Industrial 7 Inch Lcd Digital Microscope

Digital 1600X Profocal Electron Microscope

* Industrial grade profocal lens * Touch control

* 12 millions HD pixels

* 2.4G wireless remote control

* LED shadowless lamp

* Support photography and video

* 1600x magnification

* Maintenance workbench

* 7inch IPS screen

* 3000mAh battery

* Support 128G memory card



Drawtube : Monocular

Light : LED shadowless lamp

Viewing screen : 7 inch IPS HD display

Pixel : 1200P

Magnification : 1600X

Knob focus range : 10MM-50MM

Support System : Windows XP, Vista, Win7/8/10/11, Mac11.0 or above

Video format : AVI

Material : ABS, multi-coated optical glass lens

Application : Electronic component amplification

Function Mobile repair, Biological research, Jewelry inspection

Product Details:

Digital HDMI Microscope

Sony 48MP 4K HD-MI USB-C Industrial Camera

Digital Video Monocular Microscope Camera USB

 Zoom 150X



Camera  Specification:

Ø  Ultra HD 4K Camera

Ø  Using Sony Sensor

Ø  Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch;

Ø  HDMI 1080P 60 frames image output;

Ø  TYPE-C driver-free output 1080P 30 frames image output;

Ø  4K video recording;

Ø  48 million photos, JPG format;

Ø  One-click freeze/thaw function;

Ø  1080P video recording;

Ø  Electronic zoom function;

Ø  Supports manual/automatic exposure/one-click exposure, exposure compensation value adjustment;

Ø  Supports manual/automatic white balance/one-click white balance, red, green and blue are adjustable;

Ø  Provides 16 line functions, with adjustable line color, thickness and position;

Ø  Provide center crosshair display/off;

Ø  Support TF card storage, up to 64GB;

Ø  Support remote control operation, take pictures without shaking and the image will be clearer;

Ø  Support Chinese, Traditional Chinese, and English menu languages;



Ø  Supports saving shutdown setting parameters;

Product Details:

POCKET MINI 1000X 2 INCH DIGITAL MICROSCOPE FIELD USE



Specification:

Material : plastics

Dimension : 9*8*17CM

Light Source : LED

Magnification Ratio : 0-1000X

Lens Coated : Fully Multi-Coated

Field of view diameter : 2.3mm

Filter : AR anti-reflection 450~650nm

Focus Range : 10~40mm (long View)

Display screen : 2 inches 320*240

CMOS : GALAXYCORE 1/2.9"

LED : 8 pcs LED

Recording format : AVI

digital zoom : support

Camera resolution : 32M，20M，12M，10M，8M,5M ,3M, 2M，1M

Focus Mode : hand movement

picture format : JPG

PC resolution and image transfer rate : 1280*1080/25fps

white balance : automatic

exposure : automatic

PC operating system : Windows XP, Win7, Win8.1, Win10, Mac OS x 10.5 or higher

Supporting languages : Simplified Chinese, Traditional Chinese, English, French, Spanish, Portuguese, German, Italian, Russian, Japanese, Korean

Lens structure : 5G+IR

Aperture : F4.5

Camera perspective : 16°

Interface and signal transmission method : Micro/usb2.0

operate temperature : -10°C ~ +55°C

Working humidity : 30%~85%Rh

Working current : 200mA

Consumption : 1W

Polymer lithium battery : 800mAh

Product Details:

1080P HD-MI USB Industrial Camera

150x Lens Fold Bracket Remote 4K Electronic

Digital Microscope for Soldering Microscope



Specification:



48MP Industrial Camera Features:

◆ 48 million pixel imported Panasonic CMOS image sensor;

◆ Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch; HD-MI 1080P 60 frame image output;

◆ USB2.0 driver free output 1080P 30 frame image output; 4K video recording;

◆ 48 million photos, JPG format, photo size 4608x3456; One-click freezing/thawing function;

◆ 48 megapixel photography and 1080P video recording; Electronic zoom function; Support manual/automatic exposure, exposure

compensation value adjustment; Support manual/automatic white balance, red, green, blue adjustable;

◆ Provide 8 line drawing functions, line color, thickness, position adjustable; Display/close center cross; Support TF card

storage, up to 64GB; Support remote control operation, take photos without jitter image clearer;

◆ Support Chinese and English menu language (default English); Support shutdown setting parameters save;

◆ Strong metal shell.



Image resolution: 60F/S

White Balance: Auto

Light: Auto

Negative: Support

Morror: Left/right,Up/Down

Freeze: Support

OSD: English



56 LED Adjustable Compact Microscope Ring Light:

Provides intense and focused shadow-free illumination

Lighting direction changeable

Variable intensity control

Intense and focused shadow-free illumination 100,000 hours of life

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0" (27mm)

Overall outside diameter: 1.77" (45mm)



1X-150X Zoom C-mount Lens：

Working distance: 50mm-1000mm

zoom ratios: 1: 15

Magnification Power by 0.15- 2X (about 1 - 150X on the display)

view field of Max multiple: 4.2mm*2.4mm

view field of Min multiple: 130mm*70mm

Size: 30mm(diameter) * 99mm(length)



Collapsible support Feature：

Multi-directional folding optional installation, multi-purpose.

Size: 340 mm * 320 mm

Maximum bottom mounting size: 50mm



Complete set Packing include:

1 x Camera

1 x power supply

1 x C-mount Lens

1 x Camera metal Stand holder

1 x 56 LED Ring Light

ORIGIN: GABY INSTRUMENTS

Product Details:

Dinolite Digital Microscope

SONY 10 INCH DISPLAY DIGITAL MICROSCOPE 1600X

with HDMI/USB output Extra Led Lights and Batteries





Specifications

Video Maximum Pixel: 1080P

Screen: 10.1-inch IPS LCD display with 1024*600 resolution

Lens Optic Size:  1/2.8"

Photo Resolution: 2M,3M,5M,8M,10M,12M,16M,20M, 24M, 48M

Video Resolution: 720P, 1080P

Video Format: MP4 GIW10

Focus Mode: Manual

Picture Format: JPG

Illuminant: 8 LED lights (brightness adjustable)

PC Operating System: Windows 7, Windows 8.1, Windows10, Mac OS x 12 or higher

Interface and Signal Transmission Mode: Micro/USB 2.0/ Mini HDMI

Operating Temperature: -10°C~+55°C

Operating Humidity: 30%-85%RH

Working Current: 700mA

Power Dissipation: 3.5W

Language: English, French, Spanish, Portuguese, German, Italian, Simplified Chinese, Traditional Chinese, Russian, Japanese, Korean





Work with TV

Operating steps

Step 1. Connect LP101 to the TV via a HDMI cable

Step 2. After successful HDMI connection, the microscope will be turned on and the image will appear on the display. At this time, microscope button and remote-control button can be operated; when operating photo/video, the file will be automatically saved in TF card.

Photo mode

When the icon in the upper left corner of the microscope is Photo mode when the microscope is on, short press the Menu button on the microscope or short press the Photo button on the remote control, it can switch to Photo mode.

Video mode

When the icon on the upper left corner of the microscope is "it is in Video mode, when the microscope is on, short press the Menu button on the microscope or short press the Video button on the remote control, it can switch to Video mode

Work with PC

Software download - Download the applicable software

Packing List

Microscope, Bracket, Base, Type-C cable, Mini HDMI Cable, USB Cable, Straightdge, User Manual, Wireless Remote Control,

Product Details:

POCKET MINI 1000X 2 INCH DIGITAL MICROSCOPE FIELD USE



Specification:

Material : plastics

Dimension : 9*8*17CM

Light Source : LED

Magnification Ratio : 0-1000X

Lens Coated : Fully Multi-Coated

Field of view diameter : 2.3mm

Filter : AR anti-reflection 450~650nm

Focus Range : 10~40mm (long View)

Display screen : 2 inches 320*240

CMOS : GALAXYCORE 1/2.9"

LED : 8 pcs LED

Recording format : AVI

digital zoom : support

Camera resolution : 32M，20M，12M，10M，8M,5M ,3M, 2M，1M

Focus Mode : hand movement

picture format : JPG

PC resolution and image transfer rate : 1280*1080/25fps

white balance : automatic

exposure : automatic

PC operating system : Windows XP, Win7, Win8.1, Win10, Mac OS x 10.5 or higher

Supporting languages : Simplified Chinese, Traditional Chinese, English, French, Spanish, Portuguese, German, Italian, Russian, Japanese, Korean

Lens structure : 5G+IR

Aperture : F4.5

Camera perspective : 16°

Interface and signal transmission method : Micro/usb2.0

operate temperature : -10°C ~ +55°C

Working humidity : 30%~85%Rh

Working current : 200mA

Consumption : 1W

Polymer lithium battery : 800mAh

Product Details:

SONY 10 INCH DISPLAY DIGITAL MICROSCOPE 1600X

with HDMI/USB output Extra Led Lights and Batteries





Specifications

Video Maximum Pixel: 1080P

Screen: 10.1-inch IPS LCD display with 1024*600 resolution

Lens Optic Size:  1/2.8"

Photo Resolution: 2M,3M,5M,8M,10M,12M,16M,20M, 24M, 48M

Video Resolution: 720P, 1080P

Video Format: MP4 GIW10

Focus Mode: Manual

Picture Format: JPG

Illuminant: 8 LED lights (brightness adjustable)

PC Operating System: Windows 7, Windows 8.1, Windows10, Mac OS x 12 or higher

Interface and Signal Transmission Mode: Micro/USB 2.0/ Mini HDMI

Operating Temperature: -10°C~+55°C

Operating Humidity: 30%-85%RH

Working Current: 700mA

Power Dissipation: 3.5W

Language: English, French, Spanish, Portuguese, German, Italian, Simplified Chinese, Traditional Chinese, Russian, Japanese, Korean





Work with TV

Operating steps

Step 1. Connect LP101 to the TV via a HDMI cable

Step 2. After successful HDMI connection, the microscope will be turned on and the image will appear on the display. At this time, microscope button and remote-control button can be operated; when operating photo/video, the file will be automatically saved in TF card.

Photo mode

When the icon in the upper left corner of the microscope is Photo mode when the microscope is on, short press the Menu button on the microscope or short press the Photo button on the remote control, it can switch to Photo mode.

Video mode

When the icon on the upper left corner of the microscope is "it is in Video mode, when the microscope is on, short press the Menu button on the microscope or short press the Video button on the remote control, it can switch to Video mode

Work with PC

Software download - Download the applicable software

Packing List

Microscope, Bracket, Base, Type-C cable, Mini HDMI Cable, USB Cable, Straightdge, User Manual, Wireless Remote Control,

Product Details:

Digital Microscope with HDMI Connection

Sony 48MP 4K HD-MI USB-C Industrial Camera

Digital Video Monocular Microscope Camera USB

 Zoom 150X



Camera  Specification:

Ø  Ultra HD 4K Camera

Ø  Using Sony Sensor

Ø  Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch;

Ø  HDMI 1080P 60 frames image output;

Ø  TYPE-C driver-free output 1080P 30 frames image output;

Ø  4K video recording;

Ø  48 million photos, JPG format;

Ø  One-click freeze/thaw function;

Ø  1080P video recording;

Ø  Electronic zoom function;

Ø  Supports manual/automatic exposure/one-click exposure, exposure compensation value adjustment;

Ø  Supports manual/automatic white balance/one-click white balance, red, green and blue are adjustable;

Ø  Provides 16 line functions, with adjustable line color, thickness and position;

Ø  Provide center crosshair display/off;

Ø  Support TF card storage, up to 64GB;

Ø  Support remote control operation, take pictures without shaking and the image will be clearer;

Ø  Support Chinese, Traditional Chinese, and English menu languages;



Ø  Supports saving shutdown setting parameters;

Product Details:

48mp Camera Microscope

Sony 48MP 4K HD-MI USB-C Industrial Camera

Digital Video Monocular Microscope Camera USB

 Zoom 150X



Camera  Specification:

Ø  Ultra HD 4K Camera

Ø  Using Sony Sensor

Ø  Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch;

Ø  HDMI 1080P 60 frames image output;

Ø  TYPE-C driver-free output 1080P 30 frames image output;

Ø  4K video recording;

Ø  48 million photos, JPG format;

Ø  One-click freeze/thaw function;

Ø  1080P video recording;

Ø  Electronic zoom function;

Ø  Supports manual/automatic exposure/one-click exposure, exposure compensation value adjustment;

Ø  Supports manual/automatic white balance/one-click white balance, red, green and blue are adjustable;

Ø  Provides 16 line functions, with adjustable line color, thickness and position;

Ø  Provide center crosshair display/off;

Ø  Support TF card storage, up to 64GB;

Ø  Support remote control operation, take pictures without shaking and the image will be clearer;

Ø  Support Chinese, Traditional Chinese, and English menu languages;



Ø  Supports saving shutdown setting parameters;

Product Details:

1000x magnification HD 2MP 1080P resolution portable adjustable handheld wireless WIFI digital microscope



Range of application:

Perfect for medical, visual assistance, textile industrial for textile inspection, printing inspection, industrial inspection.

(PCB, precision machinery), education purpose, skin and hair examination, microbiological observation, jewelry and coin (collections) inspection, etc.



Meet various industrial demands such as skin inspection, insect observation, circuit testing, gem identification, etc.

Selling features:

1 1000times magnifications explore the wonderful micro world

2 Strong wifi connection ,suitable for all smartphone and tablets

3 Dust cover transparent cover design ,dustproof while ensuring ,suffient light to enter

4 Focusing wheel 50x-1000X magnification

5 8PCS led lights for brightness in different environments

6 Adjustable bracket to support as you need

7 HD CMOS sensor ensures high quality image and great live shot effect.

Image Sensor: High performance sensor

Sensor size: 1/4

Magnification: 50-1000 times

Lens structure: 2G+IR

Camera light source: 8 adjustable LED light

Operating temperature: 32 to 113 F

Battery: 800mAh lithium battery

Working time: 1H

Power input: DC 5V 500 mAh/1A

Focal length: 0~infinity

Camera resolution: 1920*1080P

Picture format: JPEG

Video format: MP4

G.W.: 305g

Size of box : 175mm*130mm*53mm



Window user:

You also can use included USB cable to connect to your computer.

Charging:
1.When the battery is running out of power, the blue light will be turn on.
2.Please charge the equipment with 5V 1A USB charger. Do not use 12V charger.
3.When charging, the red indicator light is on. If charging fully, the light is off.
4. Built-in 800mAh lithium battery, the microscope will be charged full in about 2 hours and able to continuously work for about 1 hour.

Product Details:

1000x magnification HD 2MP 1080P resolution portable adjustable handheld wireless WIFI digital microscope



Range of application:

Perfect for medical, visual assistance, textile industrial for textile inspection, printing inspection, industrial inspection.

(PCB, precision machinery), education purpose, skin and hair examination, microbiological observation, jewelry and coin (collections) inspection, etc.



Meet various industrial demands such as skin inspection, insect observation, circuit testing, gem identification, etc.

Selling features:

1 1000times magnifications explore the wonderful micro world

2 Strong wifi connection ,suitable for all smartphone and tablets

3 Dust cover transparent cover design ,dustproof while ensuring ,suffient light to enter

4 Focusing wheel 50x-1000X magnification

5 8PCS led lights for brightness in different environments

6 Adjustable bracket to support as you need

7 HD CMOS sensor ensures high quality image and great live shot effect.

Image Sensor: High performance sensor

Sensor size: 1/4

Magnification: 50-1000 times

Lens structure: 2G+IR

Camera light source: 8 adjustable LED light

Operating temperature: 32 to 113 F

Battery: 800mAh lithium battery

Working time: 1H

Power input: DC 5V 500 mAh/1A

Focal length: 0~infinity

Camera resolution: 1920*1080P

Picture format: JPEG

Video format: MP4

G.W.: 305g

Size of box : 175mm*130mm*53mm



Window user:

You also can use included USB cable to connect to your computer.

Charging:
1.When the battery is running out of power, the blue light will be turn on.
2.Please charge the equipment with 5V 1A USB charger. Do not use 12V charger.
3.When charging, the red indicator light is on. If charging fully, the light is off.
4. Built-in 800mAh lithium battery, the microscope will be charged full in about 2 hours and able to continuously work for about 1 hour.

Product Details:

1000x magnification HD 2MP 1080P resolution portable adjustable handheld wireless WIFI digital microscope



Range of application:

Perfect for medical, visual assistance, textile industrial for textile inspection, printing inspection, industrial inspection.

(PCB, precision machinery), education purpose, skin and hair examination, microbiological observation, jewelry and coin (collections) inspection, etc.



Meet various industrial demands such as skin inspection, insect observation, circuit testing, gem identification, etc.

Selling features:

1 1000times magnifications explore the wonderful micro world

2 Strong wifi connection ,suitable for all smartphone and tablets

3 Dust cover transparent cover design ,dustproof while ensuring ,suffient light to enter

4 Focusing wheel 50x-1000X magnification

5 8PCS led lights for brightness in different environments

6 Adjustable bracket to support as you need

7 HD CMOS sensor ensures high quality image and great live shot effect.

Image Sensor: High performance sensor

Sensor size: 1/4

Magnification: 50-1000 times

Lens structure: 2G+IR

Camera light source: 8 adjustable LED light

Operating temperature: 32 to 113 F

Battery: 800mAh lithium battery

Working time: 1H

Power input: DC 5V 500 mAh/1A

Focal length: 0~infinity

Camera resolution: 1920*1080P

Picture format: JPEG

Video format: MP4

G.W.: 305g

Size of box : 175mm*130mm*53mm



Window user:

You also can use included USB cable to connect to your computer.

Charging:
1.When the battery is running out of power, the blue light will be turn on.
2.Please charge the equipment with 5V 1A USB charger. Do not use 12V charger.
3.When charging, the red indicator light is on. If charging fully, the light is off.
4. Built-in 800mAh lithium battery, the microscope will be charged full in about 2 hours and able to continuously work for about 1 hour.

Product Details:

SONY 10 INCH DISPLAY DIGITAL MICROSCOPE 1600X

with HDMI/USB output Extra Led Lights and Batteries





Specifications

Video Maximum Pixel: 1080P

Screen: 10.1-inch IPS LCD display with 1024*600 resolution

Lens Optic Size:  1/2.8"

Photo Resolution: 2M,3M,5M,8M,10M,12M,16M,20M, 24M, 48M

Video Resolution: 720P, 1080P

Video Format: MP4 GIW10

Focus Mode: Manual

Picture Format: JPG

Illuminant: 8 LED lights (brightness adjustable)

PC Operating System: Windows 7, Windows 8.1, Windows10, Mac OS x 12 or higher

Interface and Signal Transmission Mode: Micro/USB 2.0/ Mini HDMI

Operating Temperature: -10°C~+55°C

Operating Humidity: 30%-85%RH

Working Current: 700mA

Power Dissipation: 3.5W

Language: English, French, Spanish, Portuguese, German, Italian, Simplified Chinese, Traditional Chinese, Russian, Japanese, Korean





Work with TV

Operating steps

Step 1. Connect LP101 to the TV via a HDMI cable

Step 2. After successful HDMI connection, the microscope will be turned on and the image will appear on the display. At this time, microscope button and remote-control button can be operated; when operating photo/video, the file will be automatically saved in TF card.

Photo mode

When the icon in the upper left corner of the microscope is Photo mode when the microscope is on, short press the Menu button on the microscope or short press the Photo button on the remote control, it can switch to Photo mode.

Video mode

When the icon on the upper left corner of the microscope is "it is in Video mode, when the microscope is on, short press the Menu button on the microscope or short press the Video button on the remote control, it can switch to Video mode

Work with PC

Software download - Download the applicable software

Packing List

Microscope, Bracket, Base, Type-C cable, Mini HDMI Cable, USB Cable, Straightdge, User Manual, Wireless Remote Control,

Product Details:

Sony Auto Focus Zoom Industrial Camera 150X 48MP 4K

HD-MI USB-C

Camera  Specification

Ø  Full HDMI 1080P@60FPS

Ø  Sony High sensitivity CMOS sensor

Ø  The camera uses HDMI cable to connect to the HD monitor. The dual USB ports of the camera can be connected to a mouse and USB stick to achieve the image capture or recording, no need to connect to computer。

Ø  The Type-C connector of the camera can connect to computer, which can achieve HDMI and USB 1080P@60fps sync output.

Ø  The camera can start within 5-second. With user-friendly WINDOWS style UI interface, so that  it's easy to operate even it's first time to use it

HDMI Specification

Output Resolution: 1920*1080

Frame Rate: (HDMI+USB) 60FPS

Image Storage: USB stick or computer

Video: 1920*1080@30FPS

Exposure Time: 0-999MS

Exposure: Auto and manual, providing target brightness settings

White Balance: Auto, manual and ROI mode

Parameter Setting: Contrast, saturation, gamma, sharpness, noise reduction etc

System Software: Youngwin OS

PC software: S-EYE2.0

Working Temperature: 0-60℃

Storage Temperature: -20-85℃

Size: 72*60*89.92mm

Power:   DC 5-12V

Product Details:

Digital Diamond HD Microscope

Specifications

Magnification: 50X-1000X

LCD Screen: 4.3 inch

Video Resolution: 1080P, 720P

Camera Pixels: 1920*720P,640*480

Focusing Range: Manual Focus 10-40 mm

Focus Mode: Manual

Picture Format: JPG

Power supply: DC5V AA Rechargeable battery*4

Features

Digital Diamond Girdle Microscope: This digital diamond girdle microscope adopts advanced technology, with a magnification of 50-1000 times, and can clearly display the laser engraving on the diamond girdle on the display, so that merchants and customers can easily confirm the characteristics of diamonds.

HD Display: 4.3-inch LCD display with excellent colour reproduction, a high-definition zoom lens, providing a 3mm wider focal length, a focal adjustment range of 10-40mm, and a physical distance of about 2cm.

LED Fill Light: LED fill light has a convenient and independent design, provides enough power to support outdoor observation, and can be used handheld without a stand.
Wide Application: It is very suitable for jewellery and diamond detection /processing, textile industry, children's education testing, researchers, insects, coins, jewelry, stamps, plants and other fields. It is the best choice for children, students and hobbyists.

Product Details:

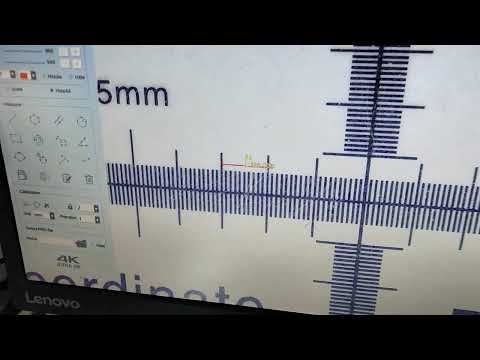

48MP 4K HD-MI USB-C Camera with Measuring Option 150X Electronic Video Microscope Camera, Monocular Digital Video Camera



Application: Lab, Mobile, PCB Board & Visual Inspection, Textile, Maintenance, Etc.

Lens Specification

Lens Zoom: 150X

Work Distance: 50 ~ 150mm

Camera Lens: C-Mount

Magnification Power: 0.12 – 2X

Visual Field: 2.4 X 32mm

Lens Size: 115 X 50mm

Camera  Specification

◆Using Sony IMX335 CMOS image sensor. ◆Using 1/2.8 inch image sensor.

◆Pixel: 48MP ◆USB interface: USB2.0 X2 (plug U disk, connect mouse) ◆HD-MI 1080P 60 frame image output. ◆Support photo, video, JPG format. ◆Support manual one-key exposure. ◆Support manual one-key white balance, red, green and blue adjustable. ◆Support cross line function. ◆Support U disk storage and mouse operation. ◆The picture is clearer without shaking. ◆Support English  menu languages ​​(default English). ◆Support shutdown setting parameter saving. ◆Support user-defined startup screen. ◆Using CNC precision milling technology to process aluminum alloy shell. ◆Support 12 kinds of measurement functions such as line drawing, straight line and circle. ◆Support measurement data calibration. ◆Support to import PNG files

Product Details:

Industrial Monocular Digital Microscope

Sony 48MP 4K HD-MI USB-C Industrial Camera Digital Video Monocular Microscope Camera USB Zoom 180X



Application: Lab, Mobile, PCB Board & Visual Inspection, Textile, Maintenance, Etc.

Lens Specification

Lens Zoom: 180X

Work Distance: 50 ~ 150mm

Camera Lens: C-Mount

Magnification Power: 0.7 – 4.5X

Visual Field: 2.8 X 1.5mm

Lens Size: 168 X 50mm

Camera  Specification

Camera: Ultra HD 4K Camera

Sensor: Using Sony CMOS Sensor

Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch

Output:  HDMI 1080P 60FPS, TYPE-C driver-free output 1080P 30FPS

Video: 4K video recording, 1080P video recording,

Photo: 48 million photos, JPG format, One-click freeze/thaw function

Camera Zoom: Electronic zoom function

Storage: Support TF card storage, up to 16 GB



Supports manual/automatic exposure/one-click exposure, exposure compensation value adjustment, Supports manual/automatic white balance/one-click white balance, red, green and blue are adjustable. Provides 16 line functions, with adjustable line color, thickness and position. Provide center crosshair display/off. Support remote control operation, take pictures without shaking and the image will be clearer. Support  English and Chinese menu languages. Supports saving shutdown setting parameters;

Product Details:

DIGITAL MICROSCOPE 1200 X WITH EXTRA LED LIGHTS AND LITHIUM BATTERIES



Parameter:

1: Pixel: HD 12 million pixels

2: Display: 7-inch high-definition LCD display.

3: Magnification: 1-1200 times continuous amplification system.

4: object distance: 10MM to infinity (different object distances correspond to different multiples)

5: Plug in the power supply or built-in super lithium battery. (Please pay attention to the built-in battery non-standard configuration)

6: Sixteen language systems: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portuguese, German, French, Italian, Turkish, Czech, Polish, Traditional Chinese, Simplified Chinese.

7: Power DC interface (Micro USB).

8: Flash card socket (MicroSD), supports 1-128GB. Class10 speed

9: Light level adjuster.

10: REST button, system restore button. (If the machine does not work, use a needle-like sharp object to press the button in the hole to restart the machine)

11: Highlight 8 LED lights, with a continuous service life of up to 100,000 hours.

In video mode:

Resolution: 1080FHD, 720P, VGA

Loop recording: Off / 3 minutes / 5 minutes / 10 minutes, after the flash card is full, the video data of the front will be deleted, and then the video will be saved.

HDR High Dynamic Range: On/Off (Automatically turn on the recording function if there is an object moving under the lens when it is turned on, no manual operation is required.)

Exposure compensation: 7-speed option

Date label: can select screen display / close - date time

In the photo mode:

Photo delay: single shot · 2 seconds · 5 seconds · 10 seconds

Photo pixel: 1.3M·2M·5M·8M·10M·12M

Continuous shooting: 3 continuous shooting

Photo quality: quality, standard, compression

Sharpness: strong · standard · soft

Color: None · Black and White · Nostalgia

ISO: Auto·100·200·400

Exposure compensation: 7-speed selection

Photo-assisted: anti-hand shake/off

Date Label: On/Off



Storage:

Watch: Up and down delete protection

D button: mode button:

Switch: camera mode, camera mode, playback mode:

Up button, down button, OK button (photo/video, open button)

Product Details:

Digital Monocular Microscope

Sony 48MP 4K HD-MI USB-C Industrial Camera

Digital Video Monocular Microscope Camera USB

 Zoom 150X



Camera  Specification:

Ø  Ultra HD 4K Camera

Ø  Using Sony Sensor

Ø  Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch;

Ø  HDMI 1080P 60 frames image output;

Ø  TYPE-C driver-free output 1080P 30 frames image output;

Ø  4K video recording;

Ø  48 million photos, JPG format;

Ø  One-click freeze/thaw function;

Ø  1080P video recording;

Ø  Electronic zoom function;

Ø  Supports manual/automatic exposure/one-click exposure, exposure compensation value adjustment;

Ø  Supports manual/automatic HDMI 1080P 60 frames image output;

Ø  white balance/one-click white balance, red, green and blue are adjustable;

Ø  Provides 16 line functions, with adjustable line color, thickness and position;

Ø  Provide center crosshair display/off;

Ø  Support TF card storage, up to 64GB;

Ø  Support remote control operation, take pictures without shaking and the image will be clearer;

Ø  Support Chinese, Traditional Chinese, and English menu languages;



Ø  Supports saving shutdown setting parameters;
